RFID Cloner

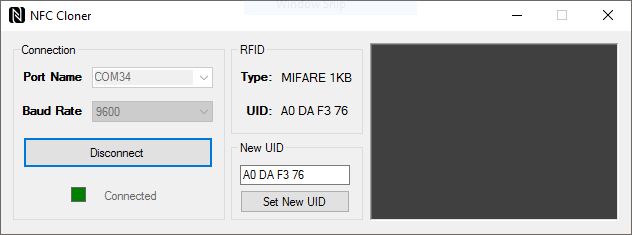

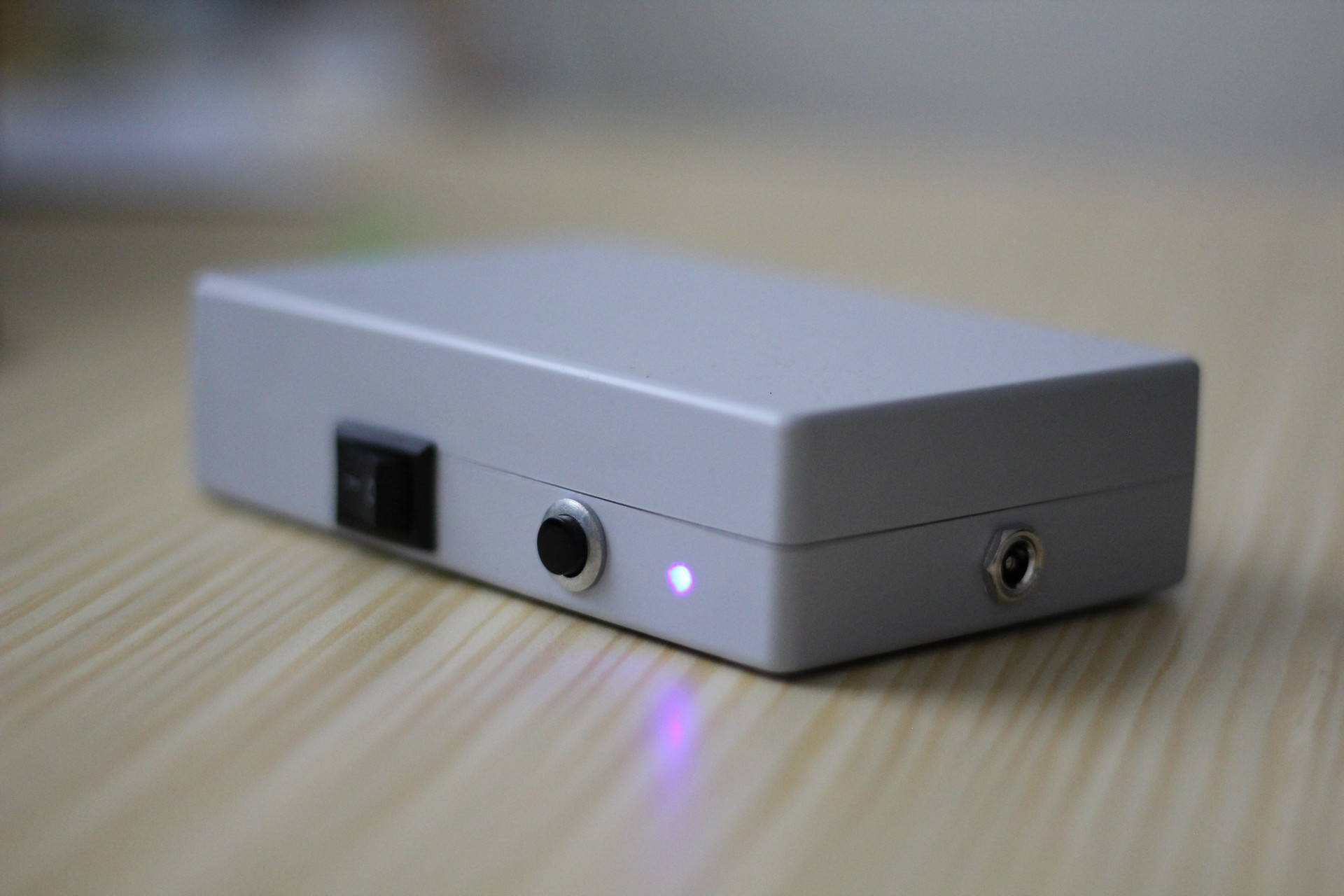

This is a battery-operated device, capable of reading and writing UID of HF RFID (13.56MHz) cards/tags, effectively capable of cloning. It uses MFRC522 RFID module and supports Mifare cards. The PC app, available on Github, can be used together with the bluetooth functionality to wirelessly connect and display the current UID, or to set a custom one.



Summary

  • HF RFID (13.56MHz)
  • UID Clone (R/W)
  • Bluetooth control
  • Windows control app
  • Battery powered
  • USB rechargeable

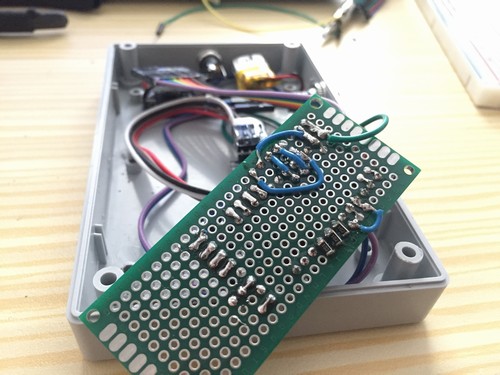

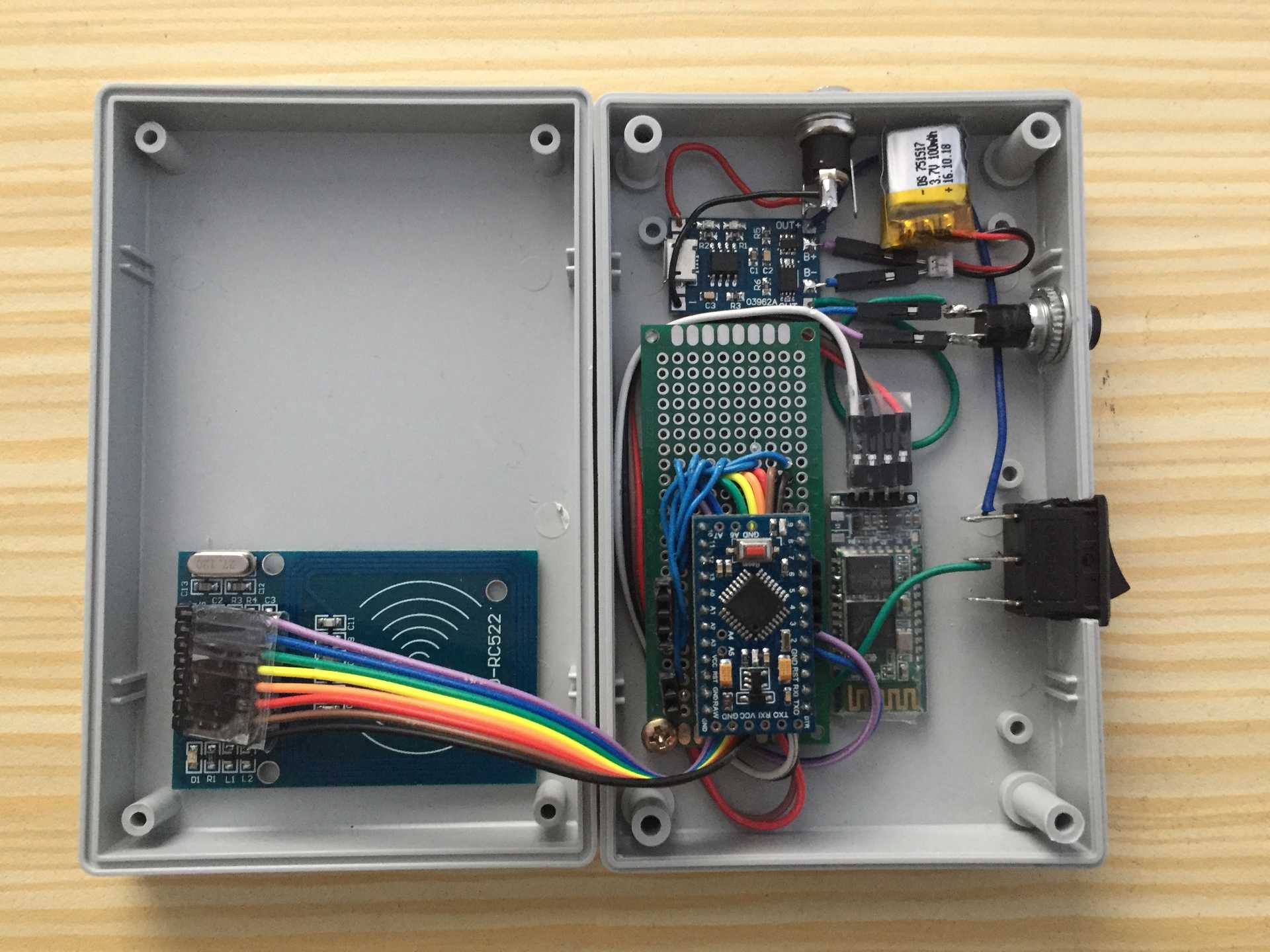

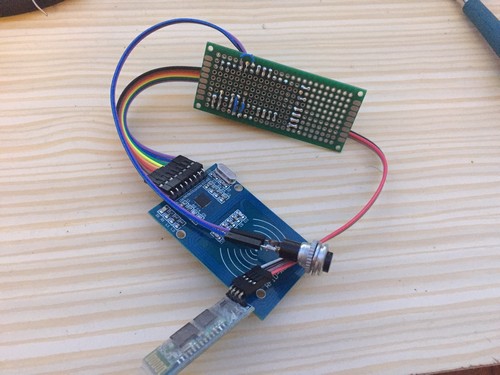

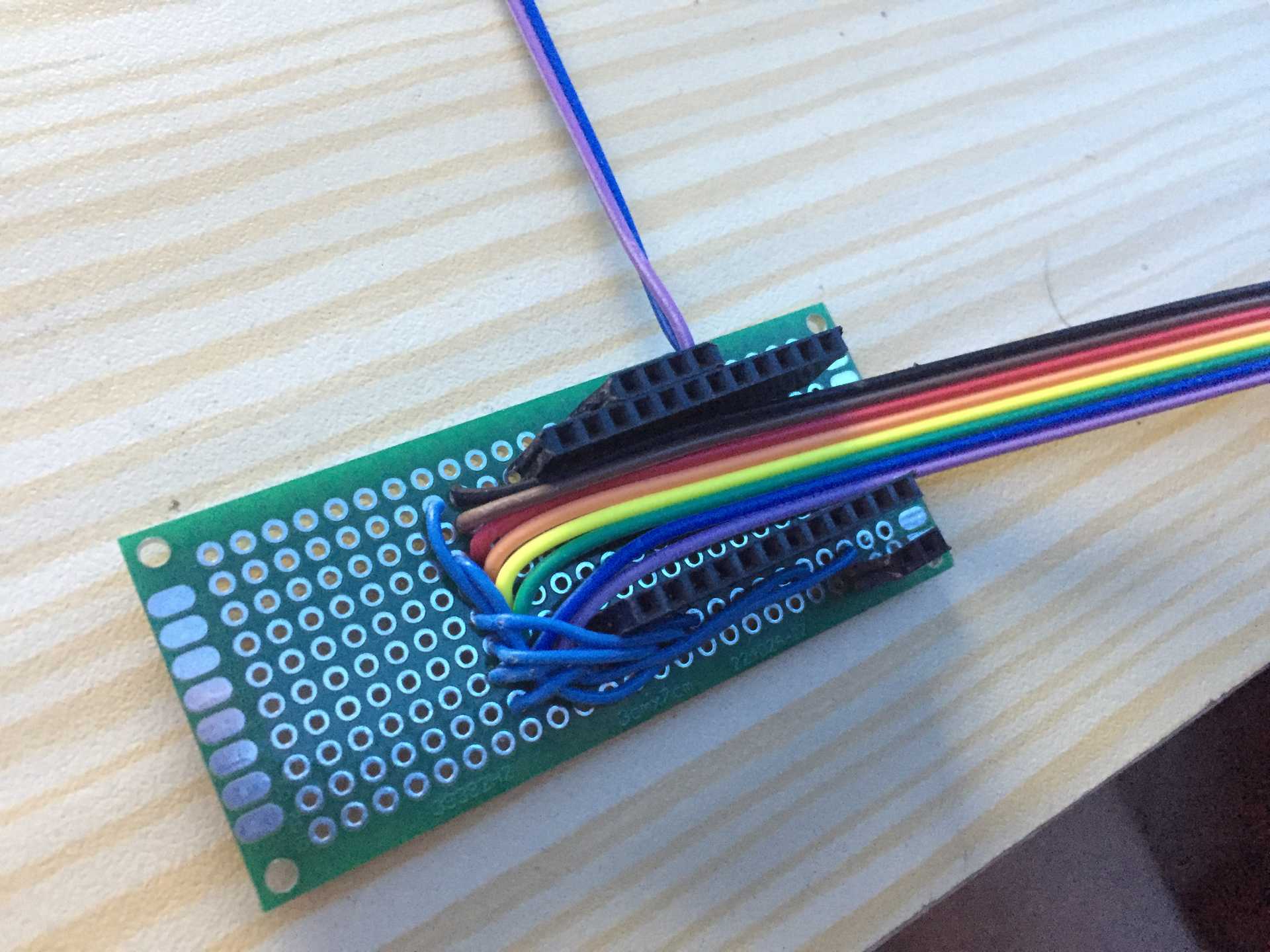

Components

  • Arduino Pro Mini
  • RC522 Module
  • HC-05 Bluetooth module
  • 3.7V Li-ion battery
  • 1S USB charging module
  • RGB LED
  • SPDT Switch
  • DC Socket Panel Mount

Resources

Github
